Speed simulation

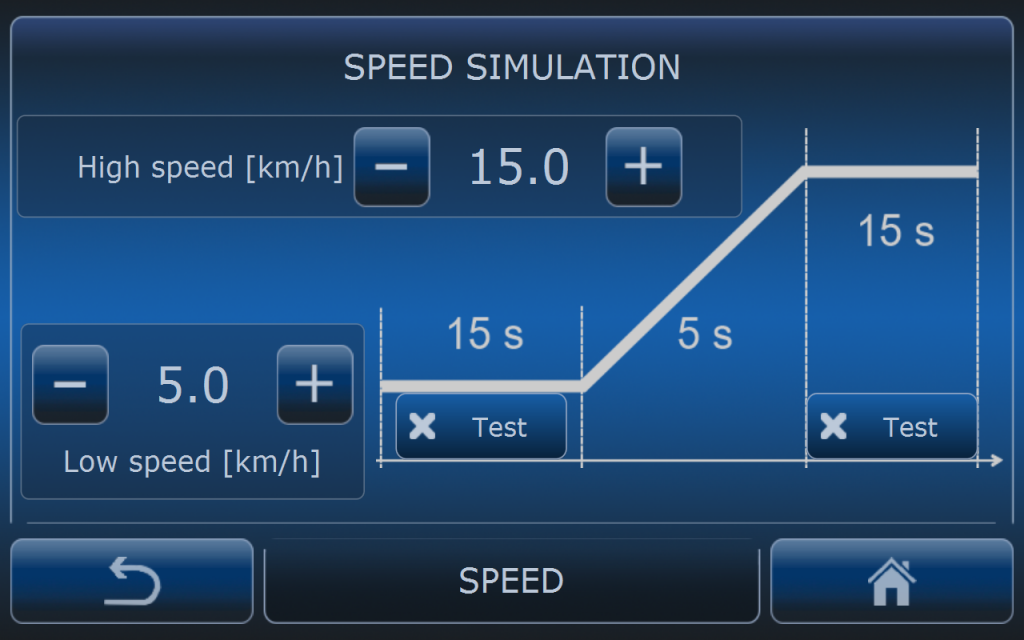

Speed simulation is for checking if the eSpray computer and regulation valve is working properly. Operator can activate one or two testing speeds. When one testing speed is activated then eSpray computer will emulate the speed when tractor and sprayer is standstill. If low and high speeds are activated then computer will emulate low speed for 15 seconds then it will increase the speed to high speed in 5 seconds and then it will keep high speed for 15 seconds. Then it will decrese the speed to low one in 5 seconds and whole process will repeat untill TEST speeds will be switched off.

When simulating speed operator can opens sections and check if eSpray computer regulates properly the pressure to keep application rate at constant level.

Remember to adjust simulating speeds to the selected nozzles. If speed is too high or too low then pressure can be over the range.
